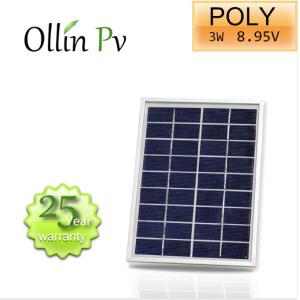

Anodized Aluninium Alloy frame Polycrystalline solar panel mini PET laminated PV solar panel powered tracking device
Features
Nominal 24V DC for standard output.
High efficiency.
Outstanding low-light performance.
High transmission tempered glass.
Rugged design to withstands high wind pressure and snow load, easy installation.
Aesthetic appearance.
Design to meet unique demand of customer.
25 year module output warranty.
Electrical Characteristics
| ITEM NO | 3W/9V |
| MONO or POLY | poly |
| Maximum power (Wp) | 3wp |
| Maximum power voltage (V) | 9 |
| Maximum power current (A) | 0.33 |
| Open circuit voltage (V) | 10.8 |
| Short circuit current (A) | 0.36 |
| Number of cells (Pcs) | 18 |
| Size of module (mm) | 210*195*18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.1 |
| Length of Cables (mm) | |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price | |
What are Solar Panels Made of?
Photovoltaic (PV) solar panels are made up of many solar cells. Solar cells are made of silicon, like
semiconductors. They are constructed with a positive layer and a negative layer, which together create an
electric field, just like in a battery.
How Do Solar Panels Generate Electricity?
PV solar panels generate direct current (DC) electricity. With DC electricity, electrons flow in one direction
around a circuit. This example shows a battery powering a light bulb. The electrons move from the negative
side of the battery, through the lamp, and return to the positive side of the battery.
With AC (alternating current) electricity, electrons are pushed and pulled, periodically reversing direction,
much like the cylinder of a car’s engine. Generators create AC electricity when a coil of wire is spun next to
a magnet. Many different energy sources can “turn the handle” of this generator, such as fossil fuel,
hydroelectricity, nuclear, wind, or solar.
AC electricity was chosen for the U.S. electrical power grid, primarily because it is less expensive to
transmit over long distances. However, solar panels create DC electricity. How do we get DC electricity into
the AC grid? We use an inverter.
Solar panels have become much cheaper to use, compared to oil, diesel and liquified natural gas in parts of
Asia. Solar energy will soon become the main source of energy. Over the years many innovations have
been made to improve solar panels. Solar panels have been used for space exploration and are being
developed to be able to power cars. Along with this, scientists are developing solar cells in silicone to
increase its convenience.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: Where is your factory located? How can I visit there?
A: Our factory located in yuyao city, zhejiang Pr, China. Welcome to visit us.
Q3. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to test and check quality.
Q4: Could you print our company LOGO on the nameplate and package?
A: Yes, we offer OEM service.
Q5. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 2MW.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for our products
